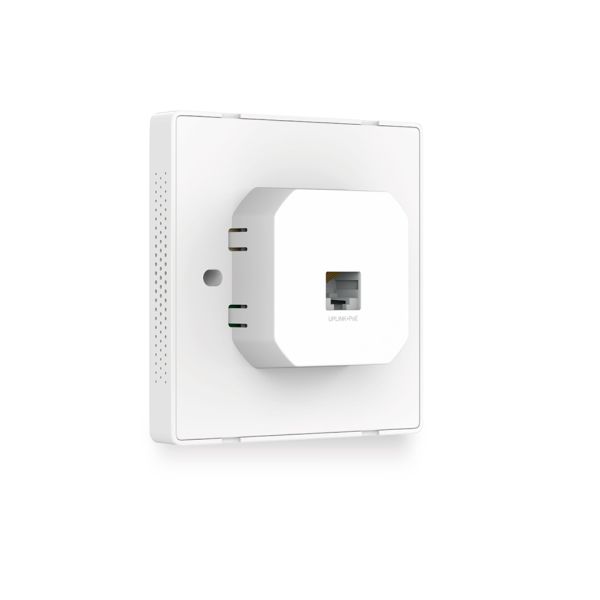

TP-Link EAP115-Wall N300 WiFi Wall Mount AP Omada SDN EAP115-Wall

300Mbit/s bezdrôtový nástenný N access point

EAP115-Wall

300Mbps Wireless N Wall-Plate Access Point, Qualcomm, 300Mbps at 2.4GHz, 802.11b/g/n, 2 10/100Mbps LAN, 802.3af PoE Supported, Compatible s 86mm & EU Standard Limit, Captive Portal, 2 Internal Antennas, In Wall Mounting

PREHĽAD

*Konštrukcia upravená pre jednoduchú montáž umožňuje inštaláciu do akejkoľvek elektroinštalačnej krabice
*Kompaktný, nízkoprofilový, diskrétny dizajn sa hodí k akémukoľvek interiérovému štýlu
*Voľne dostupný Auranet Controller Software umožňuje administrátorom ľahko spravovať stovky EAP
*Podpora napájania cez ethernet (PoE; 802.3af) pre pohodlnú a cenovo dostupnú inštaláciu
*Podniková trieda zabezpečenia Wi-Fi pomáha znížiť bezpečnostné hrozby siete
*Captive portál poskytuje jednu pohodlnú metódu overenia pre hostí Wi-Fi siete
*Podpora správy VLAN pre rozšírený sieťový manažment

Krátke predstavenie Omada SDN: https://www.youtube.com/watch?v=Veb8-o8EE6U

TECHNICKÁ ŠPECIFIKÁCIA

HARDWARE FEATURES

Interface
*10/100Mbps Ethernet (RJ-45) Port *2

Button
*LED/Wi-Fi Button?RESET

Power Supply:
*PoE(IEEE 802.3af)

Power Consumption
*2.8 W

Dimensions ( W x D x H )
*3.4×3.4×1.2 in. (86.8*86.8*30.2 mm)

Antenna Type
*Internal 2*1.8dBi Omni

Mounting
*Wall Plate Mounting

Physical Security Lock
*-

Watch Dog
*Yes

WIRELESS FEATURES

Wireless Standards
*IEEE 802.11n/g/b

Frequency
*2.4GHz

Signal Rate
*11n: Up to 300Mbps(dynamic)
*11g: Up to 54Mbps(dynamic)
*11b: Up to 11Mbps(dynamic)

Transmit Power
*CE:<15dBm(2.4GHz)

Wireless Functions
*Multiple SSIDs(Up to 8 SSIDs)
*Enable/Disable Wireless Radio
*Automatic Channel Assignment
*Transmit Power Control (Adjust Transmit Power on dBm)
*QoS(WMM)
*Load Balance
*Rate Limit
*Reboot Schedule
*Wireless Schedule
*Wireless Statistics založený na SSID/AP/Client

Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK


MANAGEMENT

EAP Controller Software
*Yes

Email Alerts
*Yes

LED ON/OFF Control
*Yes

Management MAC Access Control
*Yes

SNMP
*v1,v2c

System Logging
*Local/Remote Syslog Local/Remote Syslog

Telnet
*Yes

Web-based Management
*HTTP/HTTPS

*L3 Management
Yes

Multi-site Management
*Yes

Management VLAN
*Yes


OTHERS

Certification
*CE, RoHS

Package Contents
*300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
*Installation Guide
*Mounting Screw

System Requirements
*Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment
*Operating Temperature: 0?~40? (32?~104?)
*Storage Temperature: -40?~70? (-40?~158?)
*Operating Humidity: 10%~90% non-condensing
*Storage Humidity: 5%~90% non-condensing
