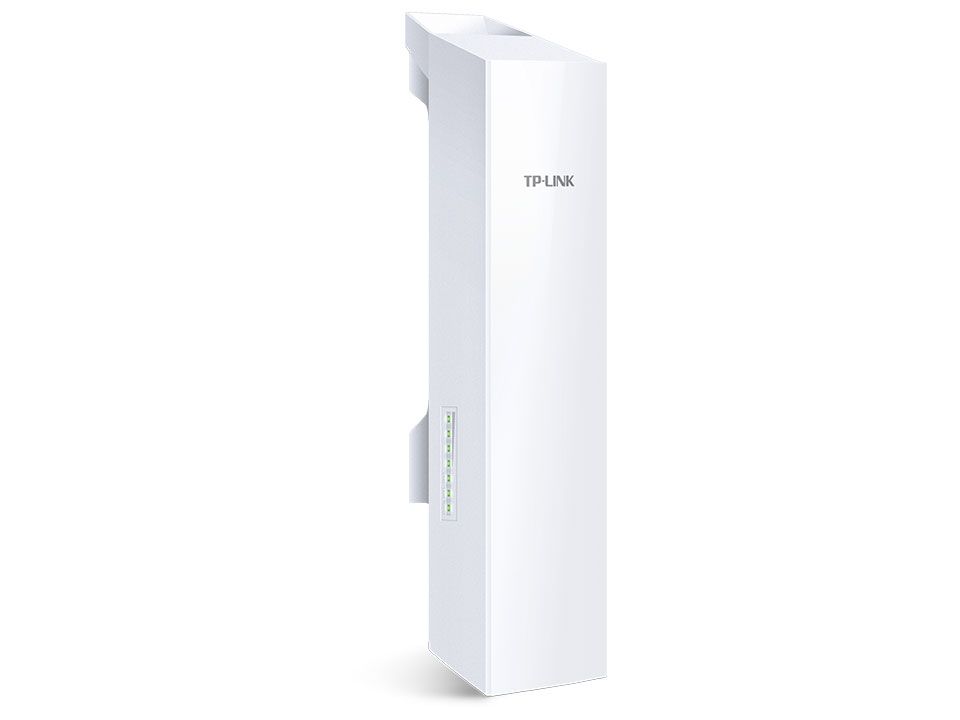

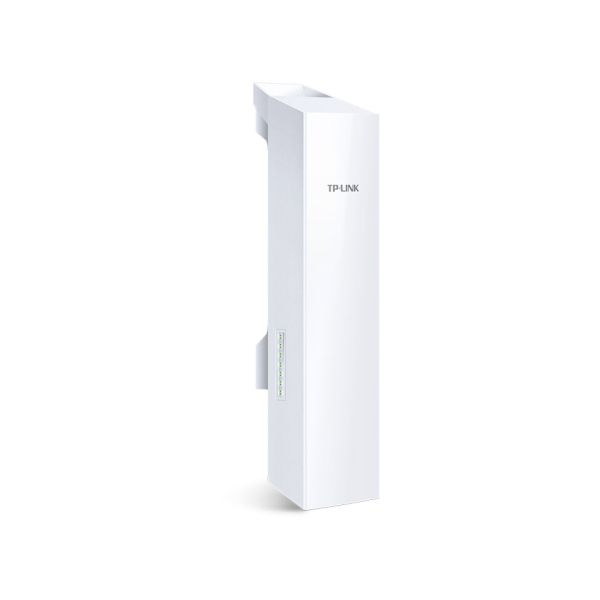

TP-Link CPE220 Outdoor 2,4GHz 300Mbps CPE220

Vonkajšie CPE zariadenie 2.4GHz 300Mbit/s 12dBi
CPE220

- Vstavaná 12dBi 2x2 smerová MIMO anténa s dvojitou polarizáciou
- Nastaviteľný výkon vysielania od 0 do 30dBm/1000mWOptimalizácia na úrovni systému pre viac ako 13km dosah bezdrôtového prenosu
- Technológia TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) zlepšuje výkon zariadenia čo sa týka priepustnosti, kapacity a latencie, ideálny pre aplikácie PTMP
- Centralizovaný systém ovládania - riadenie Pharos
- Prevádzkové režimy AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)
- Pasívny PoE adaptér podporuje napájanie cez Ethernet až na 60 metrov a umožňuje vzdialené resetovanie zariadenia

HARDWARE FEATURES

Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface:
- 1 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in)
- 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
- 1 Grounding Terminal
- 1 Reset Button
Power Supply:
- Passive Power over Ethernet cez LAN0 (+4,5pins; -7,8pins)
- Voltage range: 16-27VDC
Dimensions (WXDXH) 11×3.1×2.1 palcov (276×79×60 mm)
Power Consumption 10.8 Watts Max, Poznámka: Ak deployed using Passive PoE, výkon remeselnícky z elektrickej siete by sa mal zaznamenať nezávisle na kábli.
Antenna Type:
- Built-in 12dBi 2x2 Dual-polarized Directional Antenna
- Beam Width: 60° (H-Plane) / 30° (E-Plane), Poznámka: For more details, prosím refer to datasheet
Protection:
- 15KV ESD Protection
- 6KV Lightning Protection
Enclosure:
- Outdoor ASA stabilizovaný plastický materiál
- IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds:
- Up to 300Mbps (40MHz,Dynamic)
- Up to 144.4Mbps (20MHz,Dynamic)
- Up to 72.2Mbps (10MHz,Dynamic)
- Up to 36.1Mbps (5MHz,Dynamic)
Frequency 2.4~2.483GHz, Poznámka: Available operating frequency má vary depending on limitations of countries or regions in which the device is used.
Transmission Power 30dBm/1000mw (Adjustable power by 1dBm), Poznámka: Maximum transmission power má vary prostredníctvom rôznych kanálov, ktoré sú závislé na limitoch krajín alebo regiónov v ktorých sa device používa.

SOFTVÉR FEATURES

Wireless Configurations:
- Pharos MAXtream TDMA Technology
- 802.11b/g/n Modes
- Selectable Channel Width: 5/10/20/40MHz
- Automatic Channel Selection
- Transmission Power Control
- Dynamic Frequency Selection (DFS)
- WDS Enable/Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
- SSID Broadcast Enable/Disable
- Multi-SSID s VLAN Tagging (AP mode only)
- Distance/ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
> Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management:
- Discovery and Remote Management cez Pharos Control application
- HTTP/HTTPS Web-based management
- System Log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
System Tools:
- Wireless Signal Quality Indicators:
- Signal Strength/Noise/Transmit CCQ/CPU/Memory
- Monitory: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
- Spectrum Analyzer
- Speed Test
- Ping
- Traceroute
System-level Optimizations:
- Optimized IGMP Snooping/Proxy for multicast applications
- Hardware watch dog

POE ADAPTER FEATURES

Interfaces:
- 1 AC Jack with Earth Ground
- 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data)
- 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data)
Efficiency >80%
Button Remote Reset Button
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Power Status LEDs:
- 0~0.8A: Green
- 0.8A~1.0A: Red
Output 24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Input Voltage 100VA~240VAC @ 50Hz~60Hz
Dimensions (W x D x H) 110×57×33.5mm
Input Current 0.8A Max @ 100VAC
Input 100-240VAC, 50/60Hz
Output Voltage 24VDC(+4,5pins; -7,8pins)

OTHERS

Certification CE, FCC, RoHS, IPX5
Package Contents:
- Outdoor Wireless CPE
- 24V 1A Passive PoE Adapter
- Pole Mounting Straps
- AC Power Cord
- Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ alebo Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX alebo Linux. Poznámka: We recommend you to use one of following web browsers for an improved user
experiment: Google Chrome, Safari, a Firefox. IE browsers are not recommended.
Environment:
- Operating Temperature: -30 C - 70 C
- Storage Temperature: -40 C - 70 C
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
